Product Information

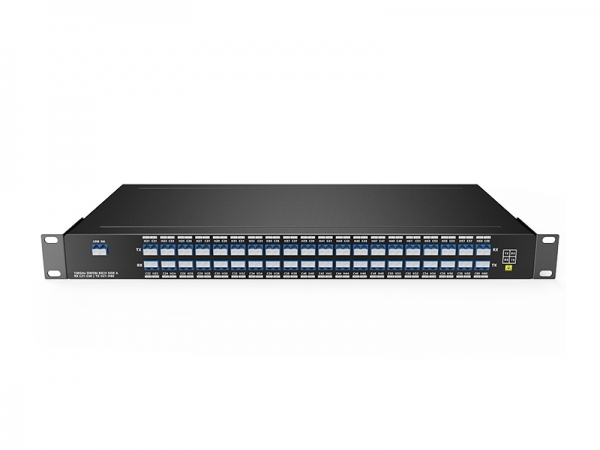

Product Description：CBand 96Channel 50GHz PolarizationInsensitive type Athermal Arrayed Waveguide Grating
SpecificationsRevision：Version 1.06
Release Date：2024/12/20
Application Fields：This specification applies to Dense Wavelength Division Multiplexingsystems, C-Band flat-top Arrayed Waveguide GratingMultiplexer/Demultiplexer
Product Specifications：
Insertion Loss：≤7dB（ITU passband worst case）
Power Consumption：Power Consumption: Not specified
Number of Channels：96 Channel（80、88 ChannelOptional）
ChannelSpacing：50GHz
Bandwidth：1dB Bandwidth 0.18nm、3dB Bandwidth 0.28nm
Crosstalk：Adjacent≥22dB、Non-adjacent≥27dB、Total Crosstalk≥20dB
