Product Information

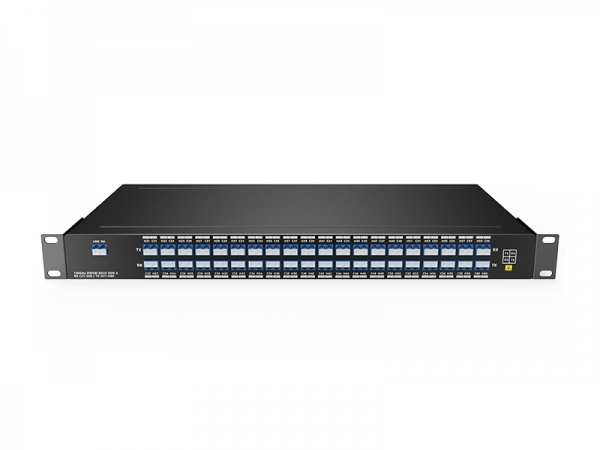

Product Description：CBand 64Channel 75GHz Athermal Arrayed Waveguide Grating
SpecificationsRevision：Version 1.06
Release Date：2024/10/20
Application Fields：
This specification applies to Dense Wavelength Division Multiplexingsystems, C-Band Arrayed Waveguide GratingMultiplexer/Demultiplexer。
Product Specifications：
Insertion Loss：≤6.0dB（Insertion Loss）
Power Consumption：Power Consumption: Not specified
Number of Channels：64 Channel（32、40、80 ChannelOptional）、
ChannelSpacing：75GHz
Bandwidth：0.5dB Bandwidth 43GHz、1dB Bandwidth 51GHz、3dB Bandwidth 71GHz
Crosstalk：Non-adjacent≥29dB
