Product Information

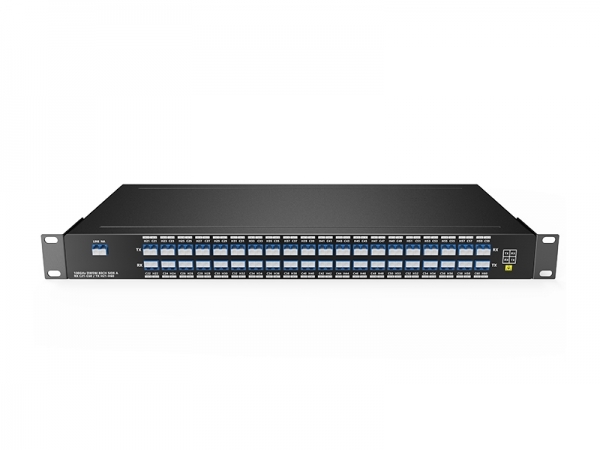

Product Description：CBand 40Channel 150GHz Athermal Arrayed Waveguide Grating
SpecificationsRevision：Version 1.0
Release Date：2024/12/20
Application Fields：
This specification applies to Dense Wavelength Division Multiplexingsystems, C-Band flat-top Arrayed Waveguide GratingMultiplexer/Demultiplexer。
Product Specifications：
Insertion Loss：4.8~5.8dB（ITU passband worst case）
Power Consumption：Power Consumption: Not specified
Number of Channels：40 Channel（16、24、32 ChannelOptional）
ChannelSpacing：150GHz
Bandwidth：0.5dB Bandwidth 55~107GHz、1dB Bandwidth 75~125GHz、3dB Bandwidth 93~167GHz
Crosstalk：Adjacent≥25dB、Non-adjacent≥30dB、Total Crosstalk≥22dB、
